Bentley 3 Litre

Bentley 3 Litre

Tourer body by Park Ward on a 3-litre chassis
Manufacturer	Bentley Motors Limited, Cricklewood, London
Production	1921–1929 1622 produced
Successor	4½ Litre
Class	Sports car
Body style(s)	as arranged with coachbuilder by customer
Engine(s)	3.0 L OHC 4-valve I4
Wheelbase	108 in (2,743 mm) 117.5 in (2,985 mm) 130 in (3,302 mm)
Designer	Walter Owen Bentley

The Bentley 3 Litre was a sports car based on a rolling chassis by Bentley. The 3 Litre was Bentley's first car. Introduced in 1919, the 3 Litre chassis was made available to customers' coachbuilders from 1921 to 1929. It was for a large car compared to the tiny, lightweight Bugattis then dominating racing, but its innovative technology and strength made up for its weight. The 4000 lb (1800 kg) car won the 24 Hours of Le Mans in 1924, with drivers John Duff and Frank Clement, and again in 1927, this time in Super Sports form, with drivers S. C. H. "Sammy" Davis and Dudley Benjafield. Its weight, size, and speed prompted Ettore Bugatti to call it "the fastest lorry in the world."

Coachwork

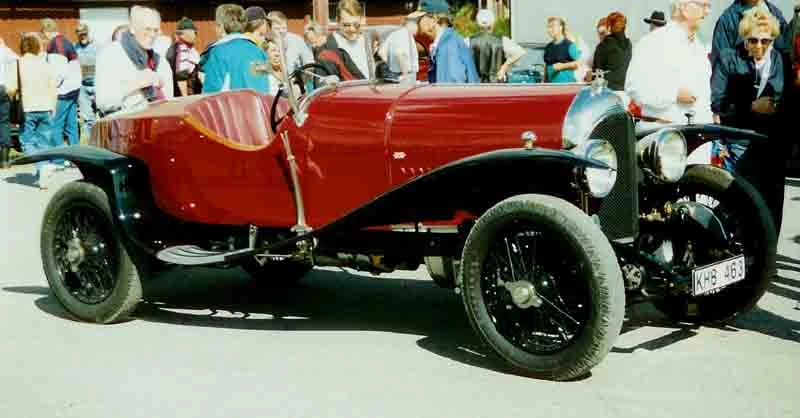

Bentley 3-Litre Boattail 1927

The 3 Litre was delivered as a running chassis, with Bentley referring many customers to Vanden Plas for standard bodies. Most were tourers, but some variety was inevitable with custom coachwork. Customers included Prince George, Duke of Kent, Gertrude Lawrence, and Beatrice Lillie.

Engineering

The 3.0 L (2,996 cc/183 cu in) straight-4 engine was large for its day, but it was its technical innovations that were most notable. The engine was one of the first production car engines with 4 valves per cylinder and an overhead camshaft. The bevel-geared shaft drive for the camshaft was designed by ex-Royal Flying Corps engineer Clive Gallop. The engine was also among the first with two spark plugs per cylinder, pent-roof combustion chambers, and twin carburetters. It was extremely undersquare, optimized for low-end torque, with a bore of 80 mm (3.1 in) and a stroke of 149 mm (5.9 in). To increase durability, the iron engine block and cylinder head were cast as a single unit.

Power output was roughly 70 hp (52 kW), allowing the 3 Litre to reach 80 mph (129 km/h). The Speed Model could reach 90 mph (145 km/h); the Super Sports could exceed 100 mph (161 km/h).

A four-speed gearbox was fitted.

On the early cars the brakes operated on the rear wheels only but, from 1924, four wheel brakes were used.

Variants

Bentley 3-Litre Speed Model 4-Seater Tourer 1925

There were three main variants of the 3 litre and they became known by the colours commonly used on the radiator badge. There is, however, no definitive rule controlling badge colours and the factory would supply any colour requested.

Blue label

This was the standard model with 117.5 in (2,985 mm) wheelbase from 1921 to 1929 or long 130.0 in (3,302 mm) wheelbase from 1923 to 1929.

Red label

Bentley Red label - XW 8863 at Locomotion - The National Railway Museum at Shildon

This used a 5.3:1 high compression engine in the 117.5 in (2,985 mm) wheelbase chassis and was made from 1924 to 1929.

Green label

Made between 1924 and 1929 this was the high performance model with 6.3:1 compression ratio and short 108 in (2,743 mm) wheelbase chassis. 100 mph (160 km/h) performance was guaranteed.

Production

The 3 Litre car was shown at the 1919 London Motor Show, but the engine had not yet been finished. It took two years to get the engine right, with the first customer delivery in September 1921. Production lasted through 1929, by which time the car had been surpassed by Bentley's own 4½ Litre car.

• Experimental: 3
• 3 Litre: 1088
• Speed Model: 513
• Super Sports: 18
