BMW X3

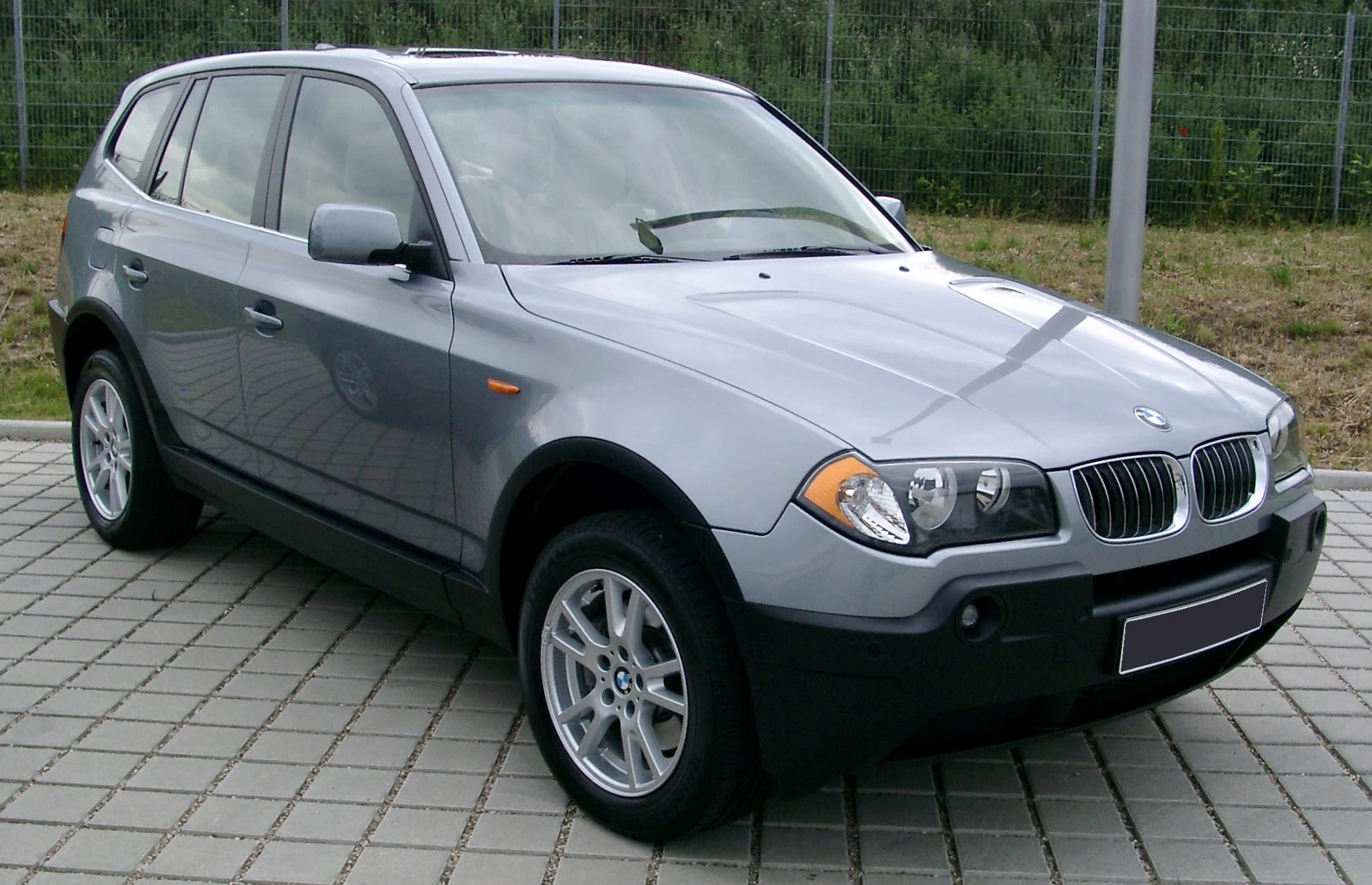

[[File:BMW X3 front 20080524|frameless|upright=1.25|alt=]]
Manufacturer BMW
Production 2003–2010
Assembly 6th of October City, Egypt (BAG)[1]
Graz, Austria (Magna Steyr)
Kaliningrad, Russia (Avtotor)[2]
Class Compact crossover SUV
Body style(s) 4-door SUV
Layout Longitudinally mounted, front engine, four-wheel drive
Engine(s) 3.0L 260 hp (190 kW) I6
Transmission(s) 6-speed automatic and manual
Wheelbase 2,795 mm (110.0 in)
Length 2004-08: 179.7 in (4,564 mm)
2009-present: 4,570 mm (179.9 in)
Width 1,855 mm (73.0 in)
Height 2006-08: 1,675 mm (65.9 in)
2004-05 & 2009-present: 1,673 mm (65.9 in)
Related BMW 3-Series
BMW X3 rear 20080524

Rear view of X3 (2004–2006)

The first generation BMW X3 (internal designation: E83) is a compact crossover SUV of the German automaker BMW. Marketed below the E53 and later E70, the X3 was presented at the International Motor Show 2003 and is since January 2004 on the market.

EnginesEdit

All models are equipped with the BMW xDrive All Wheel Drive system, with a default 40:60 torque split between the front and rear axles and has the ability to direct all the torque to either axle.

Model Model Year Engine
X3 xDrive18d 2009-Current N47D20
X3 2.0d/ xDrive20d 2005-Current M47TU2D20
X3 2.0i/ xDrive20i 2004-Current N46B20
X3 2.5i 2004–2006 M54B25
X3 2.5si/ xDrive25i 2007-Current N52B25
X3 3.0d/ xDrive30d 2004-Current M57TUD30
X3 3.0sd/ xDrive35d 2007-Current M57TU2D30
X3 3.0i 2004–2006 M54B30
X3 3.0si/ xDrive30i 2007-Current N52B30
Model capacity cylinder power Torque 0–100 km/h Vmax production period
2.0i/
xDrive20i
1995 cc 4 110 kW (150 PS)
at 6200/min
200 N·m (150 lb·ft) at 3750/min 11,5 s 198 km/h (123 mph) since 9/2005
2.5i 2494 cc 6 141 kW (192 PS)
bei 6000/min
245 N·m (181 lb·ft) at 3500/min 8,9 [9,8] s 208 [208] km/h 9/2004–8/2006
2.5si/
xDrive25i
2494 cc 6 160 kW (218 PS)
at 6500/min
250 N·m (180 lb·ft) at 2750-4250/min 8,5 [8,9] s 210 [210]/
221 [220]* km/h
since 9/2006
3.0i 2979 cc 6 170 kW (231 PS)
bei 5900/min
300 N·m (220 lb·ft) at 3500/min 7,8 [8,1] s 210 [210]/
224 [210]* km/h
9/2003–8/2006
3.0si/
xDrive30i
2996 cc 6 200 kW (272 PS)
at 6650/min
315 N·m (232 lb·ft) at 2750/min 7,2 [7,5] s 210 [210]/
232 [228]* km/h
since 9/2006
xDrive18d 1995 cc 4 110 kW (143 PS)
at 4000/min
350 N·m (260 lb·ft) at 1750/min 10,3 s 195 km/h (121 mph) seit 6/2009
2.0d 1995 cc 4 110 kW (150 PS)
at 4000/min
330 N·m (240 lb·ft) at 2000/min 10,2 s 198 km/h (123 mph) 9/2004–8/2007
2.0d/
xDrive20d
1995 cc 4 130 kW (177 PS)
at 4000/min
350 N·m (260 lb·ft) at 1750-3000/min 8,9 [9,2] s 206 [205] km/h seit 9/2007
3.0d 2993 cc 6 150 kW (204 PS)
at 4000/min
410 N·m (300 lb·ft) at 1500-3250/min 7,9 [8,2] s 210 [210]/
218 [215]* km/h
9/2003–8/2004
3.0d/
xDrive30d
2993 cc 6 160 kW (218 PS)
at 4000/min
500 N·m (370 lb·ft) at 1750-2750/min 7,4 [7,7] s 210 [210]/
220 [220]* km/h
since 9/2004
3.0sd/
xDrive35d [3]
2993 cc 6 210 kW (286 PS)
at 4400/min
580 N·m (430 lb·ft) at 1750-2250/min 6,4 s 240 km/h (149 mph) since 9/2006

</div></div></div>

Notes

[] = Values are valid for vehicles with 5-speed automatic (as of 09/2005: 6-speed automatic).
* = In combination with optional Edition Sport, M-Sport package, dynamic packet or certain alloy wheels.

2005 model year changesEdit

BMW X3 3.0i -- 01-22-2010

2004-2005 BMW X3 3.0i (US)

  • Bluetooth could actually be ordered straight from the factory (part of the Premium Package) and functioned without dealer intervention. (Although the BMW X3 was originally offered and promised with Bluetooth support in 2004, none of the cars that shipped from the factory actually had it installed. Few were able to get it to work with servicing from their dealer.)
  • The interior was upgraded with more consistent plastic panels. Also instead of having grey carpeting which was present on all 2004 X3s, the 2005 X3 came with carpeting that matched the leather ordered (with the exception of the Terracotta interior with black carpeting).
  • Slightly softer suspension.
  • Front fenders are one piece, as opposed to the two piece found on 2004 models.
  • A 2.0d engine became available in some markets - joining the 2.5i and 3.0i engines (found stateside) as well as the 3.0d engine sold elsewhere in the world.
  • An 'Open-Door' indicator was added on the 2004 models.

Revised BMW X3 (2006-2010)Edit

For 2007, the X3 is powered by the N52 inline 6 cylinder engine that debuted on the 2006 E90 3 Series. In 2007 a face lift was given to the X3, including an X-drive update, suspension adjustments, an engine upgrade, and aesthetics inside and out.

As well in 2007 the BMW X3 range extended with smaller engines including the 4-cylinder petrol and diesel option. These options now becoming available to countries across Europe, America, Asia and Australia.

  • The new BMW R6 engines available across the rest of the BMW line-up were, as with the 2006 X5 and 2006 Z4, curiously absent from the 2006 X3. It is rumored that the X3 will not get the R6 until the all-new BMW X5 is released in 2007 which will include the R6 engine amongst other newer engines. The X3 will receive, however, redesigned monochromatic front and rear fascias to replace the flat black bumpers.

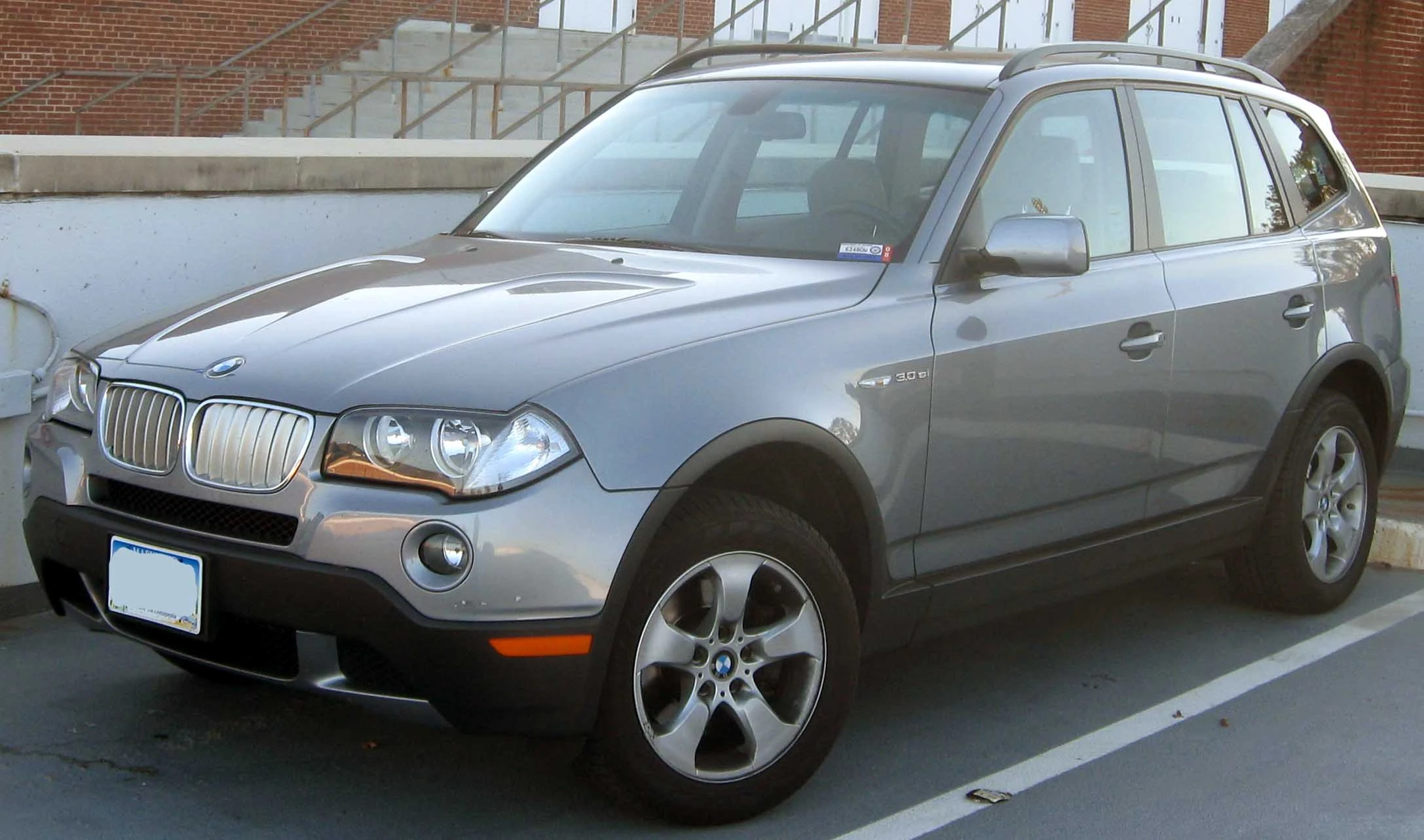

BMW 3.0si

2006-2008 BMW X3 3.0si (US)

BMW X3 rear 20071104

2007 BMW X3 (facelift)

  • U.S. bound 2006 X3's were all equipped with a special version of the 'M' technik body kit as standard. The difference being in that the U.S. cars had unpainted door sills and wheel arches. U.S. spec Sport Package 2006 X3's got the full 'M' body kit (with painted front, side and rear plastic) available in the rest of the world as a BMW accessory.
  • 2.5i was removed for sale from the U.S. market as this market tended to go more for the 3.0i model.
  • The new changes to the 2007 BMW X3 are now listed on the BMWUSA [2] home page. The 3.0si engine produces 260 hp (193.9 kW/263.6 PS) and 225 lb·ft (305 N·m) torque, at a lower engine speed (2500 rpm). The front and rear fascia are changed, more closely resembling the X5 SUV. New LED lights and interior upgrades have also been introduced. The Cold Weather package includes heated seats in the front and the rear. Adaptive headlamps and a panoramic sunroof are available, as well as upgraded dashboard components and leather seating.
  • The 2007 X3 with the automatic transmission has received owner complaints for poor shifting and lack of throttle response. Search the web for X3 and transmission to find complaints posted on several websites and also check the concerns filed with the NHTSA. It should be worth noting however that many BMW forums have attributed the X3's poor shifting and lack of throttle response to faulty transmission software programming. The problem should go away by having the dealer reprogram the EGS with Progman V27.02.00 or higher.
  • Outside the North American markets, diesel sales dominate the X3 model mix. In Europe, the range starts with a 2.0 litre 4 cylinder petrol, a 4cyl. turbo diesel (the most successful derivative) and continues with 6 cylinder turbo & bi-turbo diesels. The range topper is the sport diesel with 286 bhp (213 kW/290 PS). The X3 was in 2006 and 7 the best-selling AWD vehicle in the German market, an example of the reduced significance of off road capability in the segment. In the European markets, 'all-weather' capability has assumed far more significance than traditional wilderness hero Jeep/Land-Rover sense of SUV in the expansion of the X3 and its rival's sales.

FaceliftEdit

Since 23 September 2006 the E83 has a facelift. It was last little details on the headlights, the double kidney grill, front bumper, tail lights, the rear bumper, and especially the controversial interior. With the exception of the four-cylinder gasoline engine and the engine range has been revised, most recently in the autumn of 2007, the 2.0 diesel engine. Another engine that 3.0sd with twin turbochargers has been introduced.

EditionsEdit

Since September 2008, the Edition Exclusive and Edition lifestyle are available. The M-Sport Package is being replaced in March 2009 by the Sport Limited Edition.

DesignEdit

The X3 is only slightly smaller than its big brother, the X5 (E53) and features (measured up to the window edge), even greater, at 20 liters of luggage compartment (480 liters). Due to its compact dimensions, it looks sportier and less brawny than its bigger brother, X5.

SafetyEdit

Euro NCAP scores
Adult Occupant: Star fullStar full.svgStar full.svgStar full.svgStar empty.svg
Child Occupant: Star fullStar full.svgStar full.svgStar full.svgStar empty.svg
Pedestrian: Star fullStar empty.svgStar empty.svgStar empty.svg

AwardsEdit

  • "Yellow Angel" 2008 in category Quality [5]
  • "Yellow Angel" 2009 in category Quality [5]

ReferencesEdit

Smallwikipedialogo This page uses some content from Wikipedia. The original article was at BMW X3 (E83). The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia

  1. Interone Worldwide GmbH. "BMW X3 : Overview". Bmw-eg.com. Retrieved on 2010-10-03.
  2. "Группа компаний Автотор :: Автомобили BMW". Avtotor.ru. Retrieved on 2010-10-03.
  3. Standard with 6-speed automatic
  4. Ergebnisse des BMW E83 beim Euro NCAP-Crashtest. Retrieved on 15. Juli 2009. (englisch)
  5. 5.0 5.1 [1]
