Adams 1920 No2
Little Traction Gear No 2
Model history
Model introduced 1910
Model discontinued 1920
Model status Discontinued Discontinued
Engine Specification
Engine make Jacobs
Fuel type kerosene
Power hp 16 belt, 11 drawbar
Governed rpm {{{governedrpm}}}
No. of Cylinders 1
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type Unknown
Forward 1
Drive 2WD
Linkage Category Unknown
Tyre Sizes (std/options)
Front 36"x9" steel
Rear 50"x12" steel
Tractor Dimensions
Length (inches/metres) 146"
Height (inches/meters) Height = 84"
Weight (nominal) lb/kg 5500 lb
Wheelbase 103"
Other info
Factories Marysville, Ohio
Plow rating Unknown
Approximate Cost new in (year) $1000 (1920)
This box: view · talk

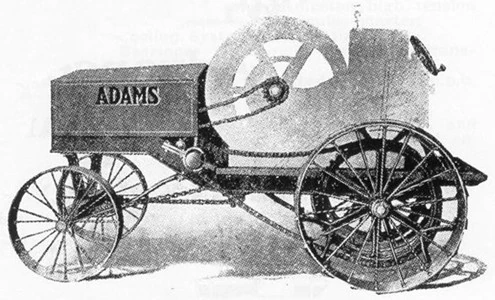

Around 1910 the Adams Husker Co. of Marysville, Ohio, USA began making the "Little Traction Gear", a tractor chassis on which the buyer could mount any make of stationary engine. The tractor came in three sizes, the No. 0 for engines of 9 hp (6.7 kW) and under, the No. 1 for engines of 9-13 hp, and the No. 2 for engines up to 20 hp (15 kW). 1920 tractor catalogs described the No. 1 with a 13-hp Hercules single-cylinder engine. The No. 2 was shown with a Jacobs engine producing 16 hp (12 kW) at 300 RPM. These tractors seemed extremely primitive by 1920 and production ended that year.
